DIGITAL PAD PRINTER

MACHINE DIMENSION RANGE

Length: 2,0 m
Width: 1,2 m
Height: 1,9 m

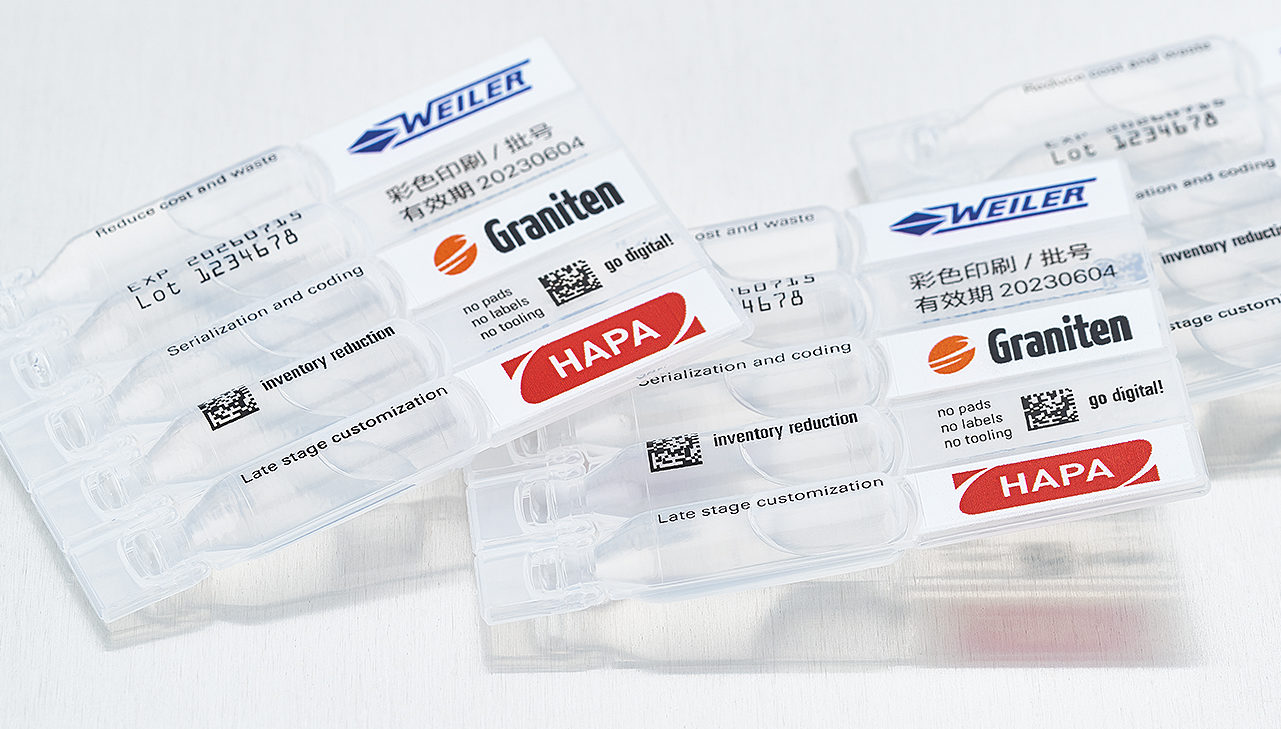

Designed for pharmaceutical production, this machine can print on any product, our first product will be a BFS (Blow-Fill-Seal).

Download product sheet

IN DEPTH

ABOUT

Graniten’s Digital Pad Printer enables our customers to increase their capability of late stage customization, decrease their inventory level and increase their savings on consumables all in a smaller footprint.

The machine is based upon a linear servo drive system which enables each incoming product to be handled individually regardless of the characteristics of the incoming product flow.

Defective products identified by vision inspection are rejected into a bin. The machine comes with a unique, short conversion time between different batches, close to zero change over time – C2Z (~2 min).

MAIN FEATURES

  • Compact and open
  • Hygienic GMP design for pharmaceutical production
  • Reject function after vision inspection
  • User-friendly HMI
  • Plasma treatment
  • UV hardener
  • Left or right infeed
  • Add the flexibility of digital technology to your packaging line
  • The solution for a highly agile and lean production
  • Repeatability of color and contrast on the product (no solvents)
  • Serialization and code printing
  • No inventory of pads, labels or tooling
  • Modular design with a simple upgrade path
  • Reduce costs and waste
  • Late stage customization of finished products

OPTIONS

  • Laser etching on the flag (BFS products)
  • Full colour print
  • Outgoing flow can be arranged in an even manner and synchronized with downstream equipment due to a built-in buffer system. This makes the machine the ideal solution for feeding flow wrapping machines etc.

TECHNICAL DATA

PRODUCT FLOW CAPACITY

Input speed: 0-220 ppm uneven flow
Output speed: 0-220 ppm even flow
Max product speed: 60 m/min

MACHINE DIMENSION RANGE

Length: 2,0 m
Width: 1,2 m
Height: 1,9 m

MEDIA REQUIREMENT

Electrical – 400V, 16A
Air supply 6 bar

Curious to find out more?





    The multi-purpose leakage detection machine

    MACHINE DIMENSION RANGE

    Length: 2,6 m
    Width: 0,9 m
    Height: 1,2 m

    Designed for pharmaceutical production, this leakage testing machine for BFS products is the ideal solution for feeding flow wrapping machines etc. Enables each incoming product to be handled individually and arranges outgoing flow in an even manner and synchronized with downstream equipment.

    Download product sheet

    IN DEPTH

    ABOUT

    Designed for pharmaceutical production. The machine is based upon a linear servo drive system which enables each incoming product to be handled individually regardless of the characteristics of the incoming product flow. Yet the outgoing flow is always arranged in an even manner and synchronized with downstream equipment due to a built-in buffer system. This makes the machine the ideal solution for feeding flow wrapping machines etc.

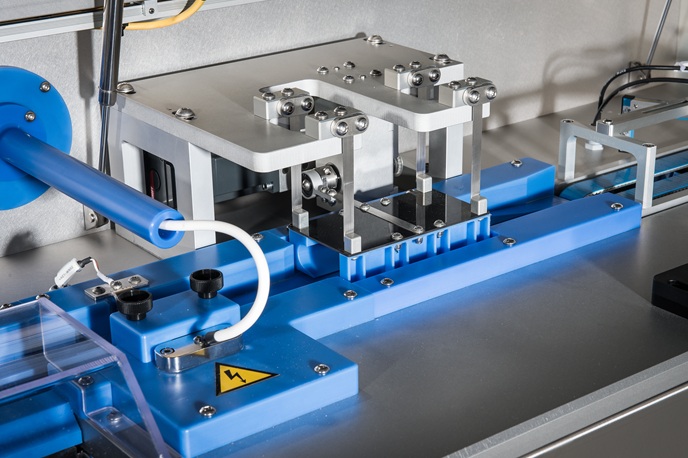

    The machine can detect pinholes in plastic BFS (Blow-Fill-Seal) products using world class leakage detection technology from Brevetti C.E.A. Defective products are rejected into a reject bin which can be emptied at any time during production.

    MAIN FEATURES

    • Compact and open
    • Hygienic GMP design for pharmaceutical production.
    • Integrated leakage detection unit
    • A vibration unit removes air pockets inside the product which would otherwise cause defective readings
    • Reject function for defective products
    • Arranges a random incoming product flow to an even outgoing flow
    • Ozone generated is removed with built-in fan and filter unit, can be connected to central evacuation system
    • User-friendly HMI

    OPTIONS

    • User authorization using central Active Directory server

    TECHNICAL DATA

    PRODUCT FLOW CAPACITY

    Input speed: 0-150 ppm uneven flow
    Output speed: 0-150 ppm even flow
    Detectable hole diameter: ≥ 15μm
    Product conductivity: ≥10mS/m

    MACHINE DIMENSION RANGE

    Length 2,6 m
    Width 0,9 m
    Height 1,2 m

    MEDIA REQUIREMENT

    Electrical – 400V, 16A
    Air Supply – 6 Bar
