MACHINE DIMENSION RANGE
- Width: 6,2 m
- Depth: 3,7 m
- Height: 2,4 m
With an open solution on a small footprint, this machine packs products in tape sealed shipping boxes and palletizes the boxes. Features few moving parts and two pallet places.
IN DEPTH
ABOUT
Designed for pharmaceutical production. With great flexibility the Graniten case packer-palletizer TS810 packs your products in tape sealed shipping boxes and palletizes the boxes, all on a small footprint.
In spite of the small footprint the machine offers an open solution with few moving parts and two pallet places. Shipping box labelling and label control is standard. Reject and IPC functions are also standard.

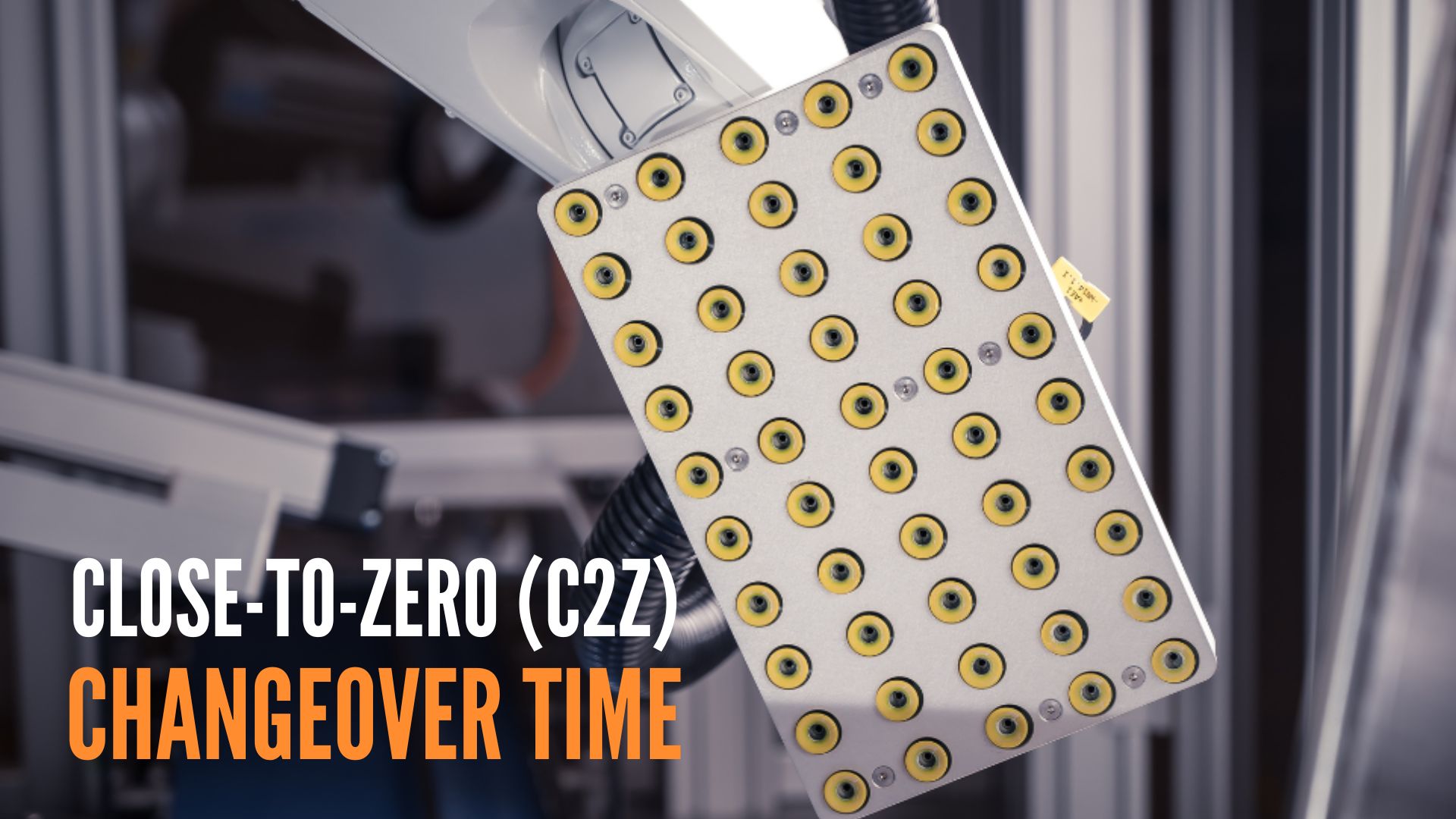

The machine features our unique short conversion time between different batches, close to zero changeover time – C2Z (< 5 min)
MAIN FEATURES
- Compact and open
- Very flexible regarding incoming products
- Two pallet stations
- Maximum pallet format is 1200×1000 mm.
- Simple and quick format change – C2Z < 5min, no format change in cardboard magazine
- Ergonomic and safe cardboard magazine
- Reject, IPC (In Production Control)
- Prepared for aggregation system
- Labelling and label control
- Application of extra shipper box label and/or wraparound label
OPTIONS
- Integration of aggregation system
- Re-introduction of shipper boxes
TECHNICAL DATA
CAPACITY SHIPPING BOXES:
Up to 8 ppm
Up to 12 kg
FLEXIBILITY:
Handled shipper box sizes:
Minimum 270×175×215 mm
Maximum 390×380×280 mm
Pallet sizes:
1200×800 mm and 1200×1000 mm
Footprint:
Width 6,2 m
Depth 3,7 m
Height 2,4 m
MEDIA REQUIREMENT:
Electrical – 400V, 25A
Air Supply – 6 Bar
Curious to find out more?
ts230 Case packer-palletizer for tape sealed boxes
MACHINE DIMENSION RANGE
- Length 4,1 m
- Width 3,0 m
- Height 2,5 m
With an open solution on a small footprint, this machine packs products in tape sealed shipping boxes and palletizes the boxes. Features few moving parts.
IN DEPTH
ABOUT
Designed for pharmaceutical production. With great flexibility the Graniten case packer-palletizer TS230 packs your products in tape sealed shipping boxes and palletizes the boxes, all on a small footprint.
In spite of the small footprint the machine offers an open solution with few moving parts. Shipping box labelling and label control is standard. Reject and IPC functions are also standard. The machine features our unique short conversion time between different batches, close to zero changeover time – C2Z (< 5 min).
MAIN FEATURES
- Compact and open
- Very flexible regarding incoming products and packaging patterns
- Maximum pallet format is 1200×1000 mm
- Simple and quick format change – C2Z < 5min, no format change in cardboard magazine
- Ergonomic and safe cardboard magazine
- Reject, IPC (In Production Control)
- Prepared for case aggregation system
- Application of extra shipper box label and/or wraparound label
- Labelling and label control
options
- Integration of aggregation system
technical data
CAPACITY SHIPPING BOXES:
Up to 2 ppm
FLEXIBILITY:
Shipper case – tape sealed (L×W×H):
min 250×200×100 mm,
max 500×400×100 mm,
One pallet station (L×W):
1200×800 mm and 1200×1000 mm
FOOTPRINT:
Length 4,1 m
Width 3,0 m
Height 2,5 m
technical changeover time:
<5 min
MEDIA REQUIREMENT:
Electrical and pneumatic supply
curious to find out more?
TP710 Case packer-palletizer for two-piece boxes
Curious to find out more?
MACHINE DIMENSION RANGE
- Length 6,8 m
- Width 3,2 m
- Height 2,5 m
With high capacity, this machine packs products in two-piece (tray, lid) shipping boxes and palletizes the boxes, all on a small footprint. Features few moving parts and two pallet places.
IN DEPTH
ABOUT
Designed for pharmaceutical production. With a great flexibility the Graniten case packer TP710 packs your products in two-piece
telescopic shipping boxes and palletizes the boxes. The machine has a very small footprint and an open solution with few moving parts and two pallet places.
Shipping box labelling and label control is standard. Reject and IPC functions are also standard. The machine features our unique short conversion time between different batches, close to zero changeover time – C2Z (< 5 min).
MAIN FEATURES
- Compact and open
- Very flexible regarding incoming products and packaging patterns
- Two pallet places
- Maximum pallet format is 1200×800 mm
- Simple and quick format change – C2Z
- No format change in cardboard magazine
- Ergonomic and safe cardboard magazine
- Labelling and label control
- Reject, IPC (In Production Control)
- Prepared for aggregation system
Options
- Extra shipping box label
- Integration of aggregation system
TECHNICAL DATA
CAPACITY SHIPPING BOXES:
Up to 7 ppm
Up to 12 kg
Footprint:
Length 6,8 m
Width 3,2 m
Height 2,5 m
MEDIA REQUIREMENT:
Electrical – 400V, 25A
Air Supply – 6 Bar
Curious to find out more?
wa410 Case packer-palletizer for wrap around boxes
MACHINE DIMENSION RANGE
- Length 4,9 m
- Width 3,1 m
- Height 2,5 m
With high capacity, this machine packs products in wrap around boxes and palletizes the boxes, all on a small footprint. Features few moving parts and two pallet places.
IN DEPTH
ABOUT
Designed for pharmaceutical production. With high capacity the Graniten case packer-palletizer WA410 packs your products in wraparound boxes and palletizes the boxes, all on a small footprint.
In spite of the small footprint the machine offers an open solution with few moving parts and two pallet places. Shipping box labelling and label control is standard. Reject are also standard. The machine features our unique short conversion time between different batches, close to zero changeover time – C2Z (< 5 min).
MAIN FEATURES
- Compact and open
- Very flexible regarding incoming products and packaging patterns
- Two pallet places
- Maximum pallet format is 1200×800 mm
- Simple and quick format change – C2Z
- Reject
- Prepared for aggregation system
OPTIONS
- Extra shipping box label
- Integration of aggregation system
TECHNICAL DATA
CAPACITY SHIPPING BOXES:
Up to 4 ppm
Up to 12 kg
Footprint:
Length 4,9 m
Width 3,1 m
Height 2,5 m
MEDIA REQUIREMENT:
Electrical – 400V, 25A
Air Supply – 6 Bar
Curious to find out more?
wa420 Case packer for bottles
MACHINE DIMENSION RANGE
- Length 4,9 m
- Width 2,0 m
- Height 2,4 m
With great flexibility this case packer packs your bottles in shipping boxes, starting from a plano carton sheet.
IN DEPTH
ABOUT
A tray or case loader designed for pharmaceutical production. With high capacity, the Graniten WA420 packs your bottle shaped products in wraparound boxes.
In spite of the compact footprint the machine offers an operator accessible solution with few moving parts. Shipping box labelling and label control is standard. The machine features our unique short conversion time between different batches, close to zero changeover time – C2Z (< 5 min).
MAIN FEATURES
- Compact and open
- Very flexible regarding incoming products and packaging patterns
- Simple and quick format change – C2Z
- Ergonomic and safe cardboard magazine
- Reject, IPC (In Production Control)
- Labelling and label control
TECHNICAL DATA
CAPACITY SHIPPING BOXES:
Up to 4 ppm
Up to 230 ppm
Footprint:
- Length 4,9 m
- Width 2,0 m
- Height 2,4 m
MEDIA REQUIREMENT:
Electrical – 400V, 25A
Air Supply – 6 Bar
